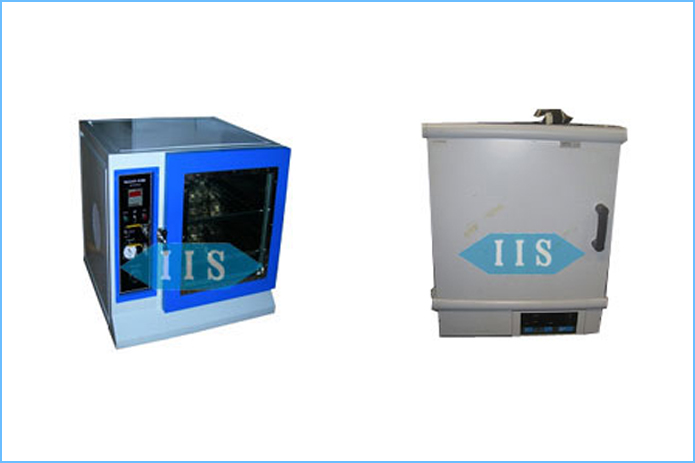

We are manufacturer of Vacuum Oven as per customer’s requirement. Our vacuum oven is used in laboratory drying purposes. We used superior quality raw material for manufacturing oven. Our quality is prime consideration at the time of manufacturing. Our team of professional engineers design tray dryer in standard as well as custom sizes. Our client’s satisfaction is guaranteed.
Vacuum ovens are double walled construction heated units. Outer body of our vacuum oven are constructed out of thick P.C.R.C. sheet duly pre-treated with primers and rust proofing and painted with long lasting stove enamel or elegantly power coated. The inner chamber is made of heavy gauge stainless steel of SS-304 grade. The gap between the walls is filled high grade minerals glass wool, which ensures maximum thermal efficiency in our vacuum ovens.
| Models | IIS-11 | IIS-26 | IIS-50 | IIS-27 | IIS-40 |
| Chamber Volume | 11liters. | 26 liters. | 50 liters. | 27 liters. | 40 liters. |
| Range | Ambient to 2500C | ||||
| Accuracy | ± 1°C | ||||
| Vacuum | Absolute vacuum up to - 760 mm/hg. | ||||
| Door | Aluminum / Mild Steel Plate | ||||
| Heat up time | 45 min. up to 2500C without load. | ||||
| Controller | Digital Display Electronic Controller. | ||||
| Sensor | Pt-100 ( RTD type ) | ||||
| Internal Chamber | Stainless Steel 304 quality. | ||||
| External | Mild Steel Powder Coated | ||||
| Tray | S.S. Trays | ||||
| Insulation | Glass Wool 75 mm. | ||||
| Door Gasket | Silicon Gasket | ||||
| Glass Windows | Toughened. | ||||
| Optional | |||||
| Safety device | Thermostat | ||||
| PID Control | Microprocessor based PID Controller | ||||
| Timer | ON / OFF cycle | ||||
| Door | Stainless Steel Plate Door. | ||||
| Capacity | 500W | 1000W | 1500W | 1000W | 1500W |
| Power Consumption | 3 amps | 5 amps | 7 amps | 5 amps | 7 amps |
| Net Weight | 25kg. | 35kg. | 45kg. | 38kg. | 50kg. |
| Power Supply | 230VAC, 50 Hz. | ||||
